Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Set Multimeter to DC Volts
CH Demand
Hinge down the PCB housing

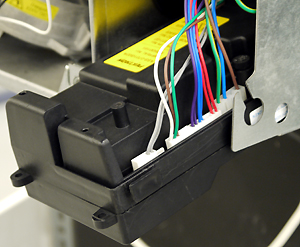

Position PCB as illustrated in image
Disconnect fan connector at the fan and make safe
Disconnect fan connector at the fan and make safe
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Measurement:
Test 1:
Measure for DC volts across the white wire of illustrated connector to a suitable neutral.
Expected voltage approx. 13.4V DC.
Test 2:
Measure for DC volts across the green wire of illustrated connector to a suitable neutral.
Expected voltage approx. 0V DC.
Measure for DC volts across the white wire of illustrated connector to a suitable neutral.
Expected voltage approx. 13.4V DC.
Test 2:
Measure for DC volts across the green wire of illustrated connector to a suitable neutral.
Expected voltage approx. 0V DC.
Isolate as per TOPs P4
and refit as necessary
