Set Appliance State:

Isolate Mains Power to appliance as per TOPs P4

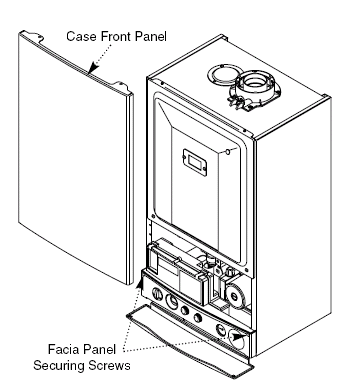

Outer Case Removal
1. Slacken the screws securing the facia panel.
Lift the outer case panel so that its securing tabs are clear of the facia.
Remove the panel, allowing the facia to hinge down.
Control Box Cover Removal
2. Remove the control box cover securing screws.
Disengage the barbs on the control box from the cover.
Remove the cover.
Inner Door Panel Removal
3. Remove the screws securing the inner door panel.
Lift the panel slightly to disengage it from the studs on top of the case.
