Set Appliance State:
On/Off Switch OFF
Set Multimeter to Resistance
Isolate Mains Power to appliance as per TOPs P4

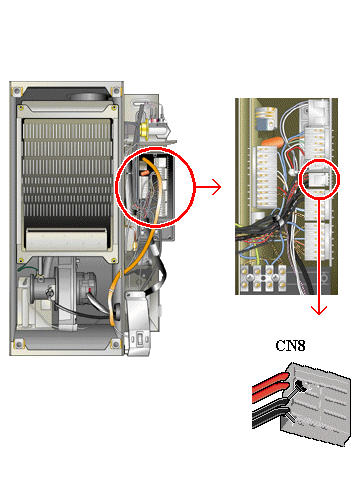

Disconnect connector CN8 from the control PCB
Disconnect connector CN8 from the control PCB
Measurement:
Measure the resistance between the red wires on connector CN8.
Resistance measured will depend upon the temperature of the appliance. The cooler the appliance the higher the resistance and should conform to the table below.
Resistance measured will depend upon the temperature of the appliance. The cooler the appliance the higher the resistance and should conform to the table below.
| Temperature °C | Resistance in kOhms |
| 20-30 | 8.5-12.0 |
| 30-40 | 6.0-8.5 |
| 40-50 | 3.7-6.0 |
| 50-60 | 2.5-3.7 |
| 60-70 | 1.7-2.5 |
| 70-80 | 1.0-1.7 |
| 80-82 | 0.8-1.0 |
Isolate as per TOPs P4
and refit as necessary
