Set Appliance State:
Set Multimeter to AC Volts
CH Demand
Isolate Mains Power to appliance as per TOPs P4
Gain access to pcb (use isolation Mat as required)
Boiler On/Off Switch On
Gain access to pcb (use isolation Mat as required)
Boiler On/Off Switch On
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Observation:
Reset lockout as necessary.
Allow ignition sequence to commence and sparking to be heard.

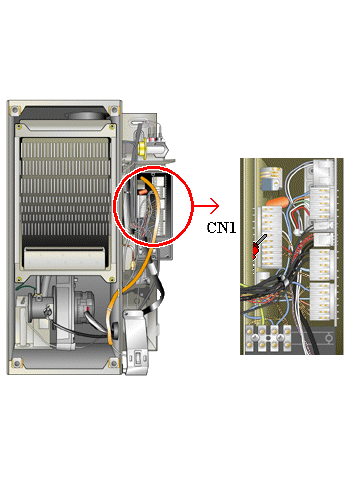

Measure the voltage at connector CN1 connection 5 (brown wire) on ignition PCB and a suitable neutral during the ignition phase.
Mains voltage should be present for 5 seconds, this will be repeated 5 times at 7 second intervals before lockout occurs, reset as required until test is complete.
Allow ignition sequence to commence and sparking to be heard.
Measure the voltage at connector CN1 connection 5 (brown wire) on ignition PCB and a suitable neutral during the ignition phase.
Mains voltage should be present for 5 seconds, this will be repeated 5 times at 7 second intervals before lockout occurs, reset as required until test is complete.
Isolate as per TOPs P4
and refit as necessary
