Set Appliance State:

Isolate Mains Power to appliance as per TOPs P4
Set Multimeter to Resistance Set meter to measure resistance

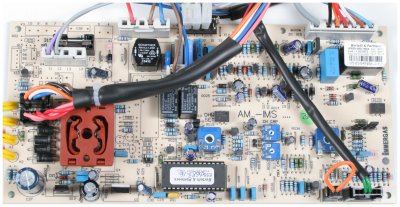

Disconnect plug X11 (pink leads secondary winding) and plug marked X4 (primary winding)

Measurement:

Test 1
Measure resistance across the pink leads of the connector X11.
Expected resistance 0.8 Ohms.
Test 2
Measure resistance across the grey and purple leads on connector X4.
Expected resistance 36 Ohms.
