OVERHEAT THERMOSTAT RESISTANCE
Set Appliance State:
Set Multimeter to Resistance
Isolate Mains Power to appliance as per TOPs P4
Measurement:

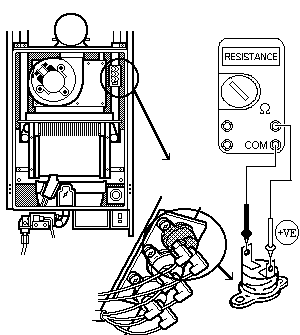

Remove both the Grey spaded wires from the Overheat Thermostat and measure the resistance across the terminals on the Thermostat.
THERMOSTAT SHORT CIRCUIT
THERMOSTAT OPEN CIRCUIT
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
