Set Appliance State:
Mains Power Off
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Measurement:

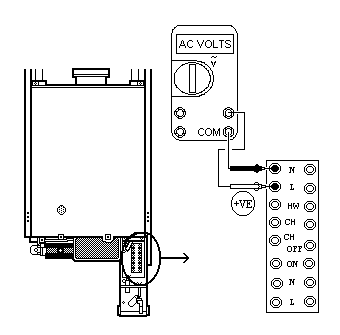

Measure Mains Voltage across the Live (Brown wire, marked L, connection 2) and the Neutral (Blue wire, marked N, connection 1) on the main connector block.

Isolate as per TOPs P4
and refit as necessary
