Set Appliance State:
Mains Power Off
Gas Off
CH Demand
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Measurement:
Allow the Fan to start.

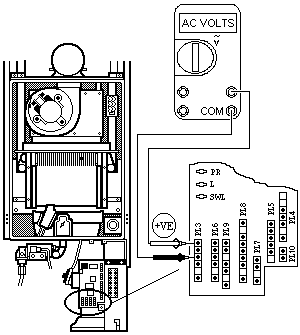

Measure the Voltage across the Red wire (connection marked PL) and the Blue wire (connection marked MN) on PCB connector PL3.
Measure the Voltage across the Red wire (connection marked PL) and the Blue wire (connection marked MN) on PCB connector PL3.

Isolate as per TOPs P4
and refit as necessary
