AIR PRESSURE SENSING TUBES
Isolate Mains Power to appliance as per TOPs P4
Observation:

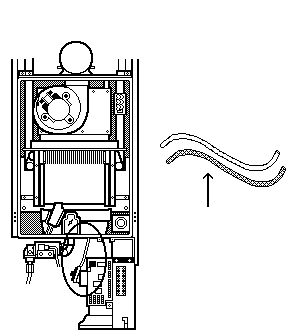

Check the Air Pressure Sensing Tubes for condensation, blockages and damage.
Sensing tubes run from the air pressure switch.
One to the fan housing, the other to the inner case
AIR TUBES UNOBSTRUCTED AND IN GOOD CONDITION
AIR TUBES OBSTRUCTED OR DAMAGED
