XSol Diagnostic System

RESISTANCE SENSOR TEMP FLOW AND HARNESS

Set Appliance State:

Isolate Mains Power to appliance as per TOPs P4

Set Multimeter to Resistance

Measurement:

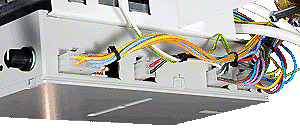

Remove the 12 way plug from the front edge of the PCB and measure the resistance across the two
yellow wires to the flow sensor.

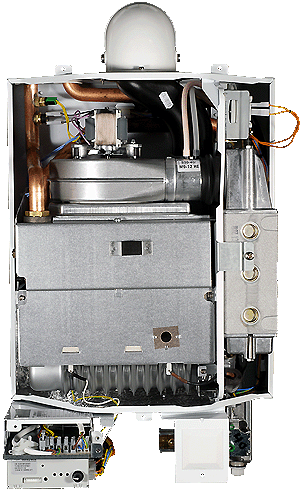

bx pt suprima he case open proc 300.gif

bx pt suprima he pcb plug side 300.gif

bx pt suprima he redoplug4 off 200.gif





Resistances vary with temperature and should conform approximately to the table below:

Temperature Range (°C)	Resistance Range
0°C to 10°C	19.0kΩ - 31.0kΩ
10°C to 20°C	12.0kΩ - 19.0kΩ
20°C to 30°C	8.1kΩ - 12.0kΩ
30°C to 40°C	5.5kΩ - 8.1kΩ
40°C to 50°C	3.8kΩ - 5.5kΩ
50°C to 60°C	2.7kΩ - 3.8kΩ
60°C to 70°C	2.0kΩ - 2.7kΩ
70°C to 80°C	1.4kΩ - 2.0kΩ
80°C to 90°C	1.1kΩ - 1.4kΩ
90°C to 100°C	800Ω - 1.1kΩ

Note.
Clicking on the table will switch between table & graph
