Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Remove the burner earth pin from heat exchanger
Measurement:
Thoroughly check the burner earth pin for signs of damage, cleanliness and good general condition.

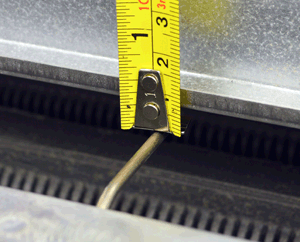

Also check the probe has not distorted away from the burner, if in doubt measure the gap between the burner and the electrode as shown. The gap from the burner should be approximately 6mm.
Also check the probe has not distorted away from the burner, if in doubt measure the gap between the burner and the electrode as shown. The gap from the burner should be approximately 6mm.
Isolate as per TOPs P4
and refit as necessary
