AIR PRESSURE SWITCH CONNECTION TUBES
Set Appliance State:
Gas Off
Isolate Mains Power to appliance as per TOPs P4
Boiler Switch in OFF position
Observation:

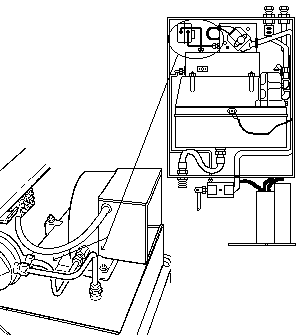

Remove Impulse Tubes from Air Pressure Switch and check for blockages or damage.
TUBES OK
TUBES BLOCKED OR DAMAGED
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
