Set Appliance State:
Mains Power Off
Gas Off
CH Demand
Boiler Switch in ON position
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Measurement:

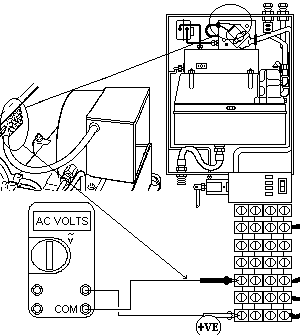

Measure Mains Voltage across Brown and Blue wires on Fan Connector Block.
Note:
Measurement should be taken on output side of connector.
Note:
Measurement should be taken on output side of connector.

Isolate as per TOPs P4
and refit as necessary
