Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
INFORMATION CASE REMOVAL

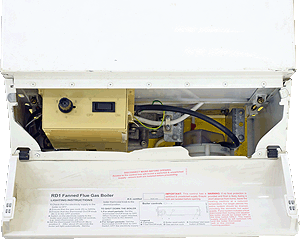

Controls Pod Removal:
A. Loosen 1 screw either side, front of boiler then slide out and down.
B. Drop down panel can be lifted off via the hinges to allow easier access.
A. Loosen 1 screw either side, front of boiler then slide out and down.
B. Drop down panel can be lifted off via the hinges to allow easier access.
Combustion Chamber Access:
C. Four screws, one in each corner at the back either side then case lifts up and off.
C. Four screws, one in each corner at the back either side then case lifts up and off.
A A
B B
C C
C C
