Set Appliance State:
Gas Off
| Isolate Mains Power to appliance as per TOPs P4 |
DHW Demand
Remove the electrode assembly

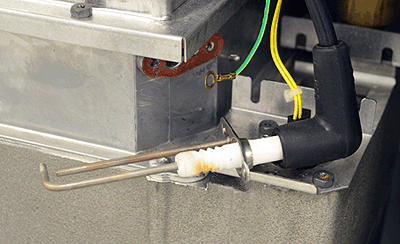

Position as shown in the image
Ensure only the metal part of the electrode mounting bracket is touching the appliance metalwork as shown
DO NOT HOLD THE ELECTRODE ASSEMBLY
Position as shown in the image
Ensure only the metal part of the electrode mounting bracket is touching the appliance metalwork as shown
DO NOT HOLD THE ELECTRODE ASSEMBLY
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:
Allow the boiler to run and ignition sequence to commence.
Observe the electrode, is sparking present at the electrode tip?
Note:
If the appliance locks out reset as necessary until the test is complete.
Observe the electrode, is sparking present at the electrode tip?
Note:
If the appliance locks out reset as necessary until the test is complete.
Isolate as per TOPs P4
and refit as necessary
