Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Remove burner assembly
Observation:

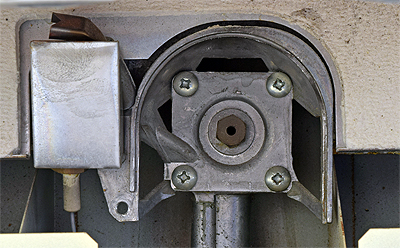

Inspect main burner injector for restrictions.
Inspect around the injector assembly for any signs of
soot or discoloration which may indicate the cork
gasket behind has deteriorated.
Note:
If in doubt remove the injector / pilot assembly and visually
check the cork gasket, however be aware if the gasket
has not been recently replaced then this may damage it.
Inspect around the injector assembly for any signs of
soot or discoloration which may indicate the cork
gasket behind has deteriorated.
Note:
If in doubt remove the injector / pilot assembly and visually
check the cork gasket, however be aware if the gasket
has not been recently replaced then this may damage it.
