Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Remove burner

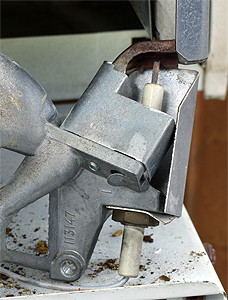

Remove main & pilot injector assembly

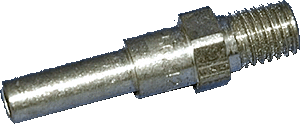

Remove pilot injector
Remove main & pilot injector assembly
Remove pilot injector
Observation:
Inspect pilot injector for blockages or restrictions.
Check the pilot hood is free from debris / soot and is not warped or damaged.
Note:
Ensure gasket is in good condition and fitted correctly on reassembly.
Check the pilot hood is free from debris / soot and is not warped or damaged.
Note:
Ensure gasket is in good condition and fitted correctly on reassembly.
Isolate as per TOPs P4
and refit as necessary
