XSol Diagnostic System

INSPECTION CONDENSING HEAT EXCHANGER

Set Appliance State:

Isolate Mains Power to appliance as per TOPs P4

Remove fan & heat exchanger adaptor
Remove sump

Observation:

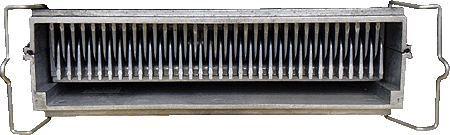

Inspect condensing heat exchanger flueways for restrictions or blockages.

id classic he 9 case off pcb down.gif

id classic he 9 h32533 flue adaptor in situ small.jpg



@mirror on its own.gif


id classic he 9 721588 che bottom.gif
