Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
CASE REMOVAL

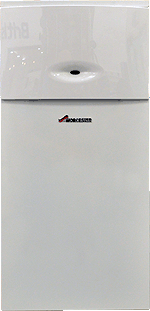

1. Grip the outer sides of the
front panel (A) pull and lift
away from retaining lugs.
front panel (A) pull and lift
away from retaining lugs.

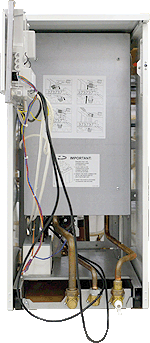

2. Remove screw (C) to swing control panel (D) outwards to its full extent.
B
(see note)
Removal top panel
A
(see note)
Removal top panel
A
D
E
C

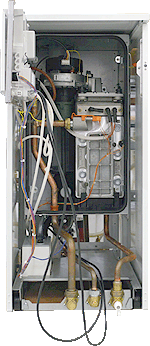

3. Remove four screws (E) to remove the inner combustion chamber cover.
Note. If required, top
panel (B) can be removed,
remove 2x internal screws,
grip the outer sides pull
upwards and lift away.
panel (B) can be removed,
remove 2x internal screws,
grip the outer sides pull
upwards and lift away.
