RESISTANCE SENSOR RETURN AND HARNESS

Set Appliance State:

Isolate Mains Power to appliance as per TOPs P4

Set Multimeter to Resistance

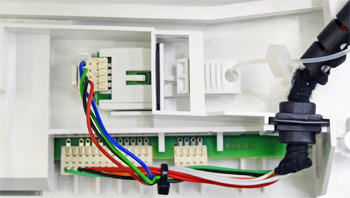

Gain access to PCB (use Insulation Mat as required)
Disconnect low voltage connector X7 from the PCB

Measurement:

Measure the resistance between the centre white
wires on X7, marked 16.1 and 16.2.
The resistance should conform approximately to the table below:

wc 27ri compact case off pcb exposed.gif

wc 27ri compact j15711 har x7 connector.gif

Temperature Range (°C)	Resistance Range
0°C to 10°C	20.0kΩ - 34.0kΩ
10°C to 20°C	13.0kΩ - 20.0kΩ
20°C to 30°C	8.0kΩ - 13.0kΩ
30°C to 40°C	5.3kΩ - 8.0kΩ
40°C to 50°C	3.5kΩ - 5.3kΩ
50°C to 60°C	2.4kΩ - 3.5kΩ
60°C to 70°C	1.7kΩ - 2.4kΩ
70°C to 80°C	1.2kΩ - 1.7kΩ
80°C to 90°C	900Ω - 1.2kΩ
90°C to 100°C	700Ω - 900Ω

Note:
1. Identification numbers for the wiring connections are located on the PCB.
2. Click on resistance table to switch between table and graph view.
