Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
WORCESTER GREENSTAR RI COMPACT

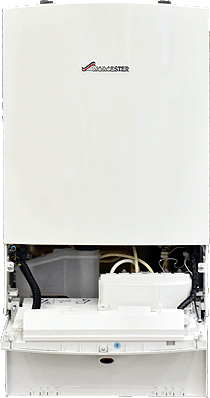

Lowering the Fascia Panel:
Loosen the bottom 2 screws then gently pull the 2 screws down and carefully lever the panel down. Take care not to damage any electrical connections.
Loosen the bottom 2 screws then gently pull the 2 screws down and carefully lever the panel down. Take care not to damage any electrical connections.
Case Removal:
Remove the 2 screws below the combustion chamber, release the 2 catches at the top of the boiler and slide the case off forwards.
Remove the 2 screws below the combustion chamber, release the 2 catches at the top of the boiler and slide the case off forwards.
Mains Electrical Connections:
Mains connections and fuse can be accessed by removing the two screws at the rear of the control board panel.
Mains connections and fuse can be accessed by removing the two screws at the rear of the control board panel.
PCB Connections:
PCB connections can be accessed by removing the two screws at the front of the control board panel.
PCB connections can be accessed by removing the two screws at the front of the control board panel.
