Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Set Multimeter to AC Volts
CH Demand
Gain access to PCB (use Insulation Mat as required)
CH Temperature control set to MAX
CH Temperature control set to MAX
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Measurement:
Reset boiler as necessary and allow the appliance to complete its self check.
During the sparking stage of the ignition sequence:

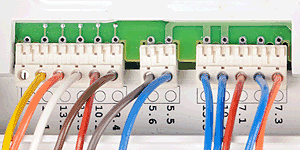

Test 1: Measure the voltage between the Red pin marked 7.1 and the Blue pin marked 7.2 on X4 connector at the PCB.
Test 2: Measure the voltage between the Orange pin marked 7.3 and the Blue pin marked 7.2 on X4 connector at the PCB.
Mains voltage expected on both tests.
Note:
The boiler will attempt to light 5 times before going to lockout, with 30 seconds between each attempt.
During the sparking stage of the ignition sequence:
Test 1: Measure the voltage between the Red pin marked 7.1 and the Blue pin marked 7.2 on X4 connector at the PCB.
Test 2: Measure the voltage between the Orange pin marked 7.3 and the Blue pin marked 7.2 on X4 connector at the PCB.
Mains voltage expected on both tests.
Note:
The boiler will attempt to light 5 times before going to lockout, with 30 seconds between each attempt.
Isolate as per TOPs P4
and refit as necessary
