Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Set Multimeter to DC Volts
Remove DC electrical connector from fan assembly (5 pin connector) and make safe
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Measurement:
Reset boiler if required.

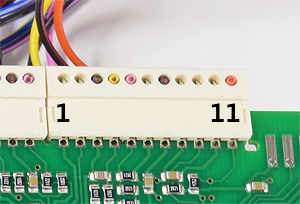

Measure the DC volts at the PCB connector X8 from
each wire listed in the table to the black wire (pin 3)
Voltages should be approx. as follows:
Notes:
1. Wires may be multicoloured.
2. Test must be carried out during initial fan purge period
(within 4 minutes of power on) repeat as necessary.
Measure the DC volts at the PCB connector X8 from
each wire listed in the table to the black wire (pin 3)
Voltages should be approx. as follows:
Notes:
1. Wires may be multicoloured.
2. Test must be carried out during initial fan purge period
(within 4 minutes of power on) repeat as necessary.
Isolate as per TOPs P4
and refit as necessary
