Set Appliance State:

Isolate Mains Power to appliance as per TOPs P4
Set Multimeter to Resistance Set meter to measure resistance

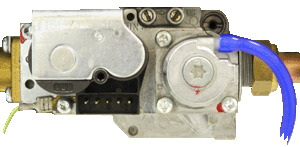

Remove the leads from the gas valve.

Measurement:

Test 1:
Measure the Resistance across the two outer terminals of the gas valve.
Expect approximately 4.1 KOhms
Test 2:
Measure the Resistance between the left hand terminal
on the gas valve solenoid and Earth.
Expected resistance greater than 1 MOhm.
Test 3:
Measure the Resistance between the right hand terminal
on the gas valve solenoid and Earth
Expected resistance greater than 1 MOhm.
Note.
A reading of O.L on tests 2 and 3 is acceptable as this is greater than 1 MOhm.
