Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
IDEAL ICOS HE 30 & 36
Note: Wiring harness colours may change but test points will remain the same.

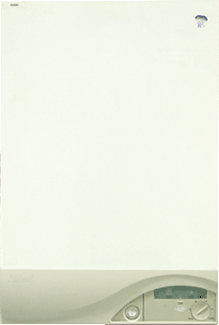

Outer Case:
Remove the two securing screws.
Pull the panel forward at the bottom and lift to pull away from the top lugs.
Remove the two securing screws.
Pull the panel forward at the bottom and lift to pull away from the top lugs.
Underside Panel:
Remove the four securing screws. Pull the right hand side of the panel down, slide to the right and withdraw.
Remove the four securing screws. Pull the right hand side of the panel down, slide to the right and withdraw.

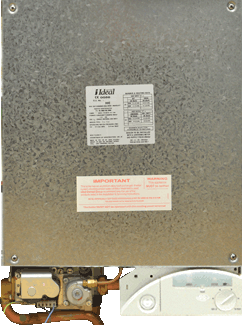

Combustion Chamber Panel:
Remove the four securing screws and lift off the panel.
Remove the four securing screws and lift off the panel.
