Set Appliance State:
Gas Off
| Isolate Mains Power to appliance as per TOPs P4 |
DHW Demand
Remove the electrode assembly

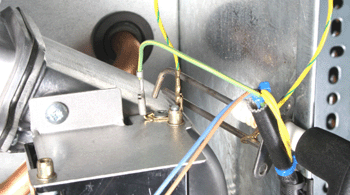

Position as Shown in the Diagram
DO NOT HOLD THE ELECTRODE ASSEMBLY
Ensure the earth wire is slid over the straight part of the electrode as shown

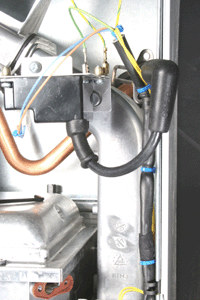

Position as Shown in the Diagram
DO NOT HOLD THE ELECTRODE ASSEMBLY
Ensure the earth wire is slid over the straight part of the electrode as shown
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:
Allow the boiler to run and ignition sequence to commence, observe the electrode is sparking present at the electrode.
Note:
If the appliance locks out reset as necessary until the test is complete.
Note:
If the appliance locks out reset as necessary until the test is complete.
Isolate as per TOPs P4
and refit as necessary
