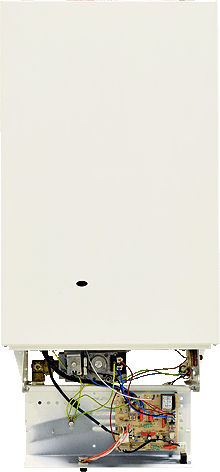

Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
CH Demand
Attach a temperature clamp on the CH flow pipe as near as possible to the appliance (right hand side)
Temperature control knob set to MAX (6)
Temperature control knob set to MAX (6)
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:
Allow the boiler to run with a CH demand.
The appliance should run to an operating temperature of
75 - 82°C and then the burner should shut down
without the overheat stat operating.
Does the boiler operate as described?
The appliance should run to an operating temperature of
75 - 82°C and then the burner should shut down
without the overheat stat operating.
Does the boiler operate as described?
