Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |

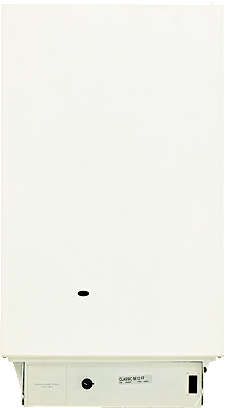

INFORMATION CASE REMOVAL

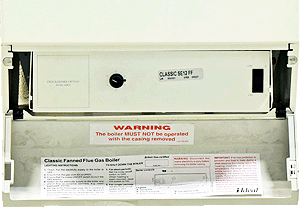

Controls Pod Removal:
A. Loosen 1 screw either side, front of boiler then slide out and down.
B. Drop down panel can be lifted off via the hinges to allow easier access.
A. Loosen 1 screw either side, front of boiler then slide out and down.
B. Drop down panel can be lifted off via the hinges to allow easier access.
PCB / Terminal Block Access:
C. 2 screws either side under cover then PCB housing slides forward and down.
Combustion Chamber Access:
D. Two screws at the back either side then case lifts up and off.
C. 2 screws either side under cover then PCB housing slides forward and down.
Combustion Chamber Access:
D. Two screws at the back either side then case lifts up and off.
This model does not cover the optional Programmer Kit or Sealed System Unit
A A
B B
C C
D D
Colour of PCB may differ, but operation remains the same
