Isolate Mains Power to appliance as per TOPs P4
G.C. Number 41 391 49
Prior to serial number TN 154299 0000 4601
Boiler Front Panel
Remove the two retaining screws from the underside of the appliance.
Unhook and remove the front panel.

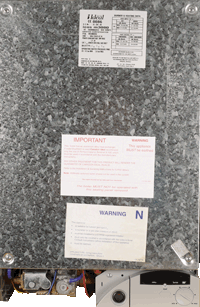

Sealing panel
To remove the sealing panel remove the four retaining screws.
Remove the panel.
Bottom Panel
To remove the bottom panel remove the two screws.
Allow the RH side of the bottom panel to lower slightly.
Withdraw the LH side of the bottom panel from the retaining clips.
