SENSOR RETURN

Set Appliance State:

Set Multimeter to Resistance

Isolate Mains Power to appliance as per TOPs P4
Disconnect connector J10 from the PCB
Ensure the flow sensor leads (blue leads) are connected to
the sensor and are in good condition

Measurement:

Measure resistance across the connections at the disconnected plug (blue leads).

Temperature Range (°C)	Resistance Range
0°C to 10°C	20.0kΩ - 32.0kΩ
10°C to 20°C	12.0kΩ - 20.0kΩ
20°C to 30°C	8.1kΩ - 12.0kΩ
30°C to 40°C	5.4kΩ - 8.1kΩ
40°C to 50°C	3.7kΩ - 5.4kΩ
50°C to 60°C	2.6kΩ - 3.7kΩ
60°C to 70°C	1.9kΩ - 2.6kΩ
70°C to 80°C	1.4kΩ - 1.9kΩ
80°C to 90°C	1.0kΩ - 1.4kΩ
90°C to 100°C	800Ω - 1.0kΩ

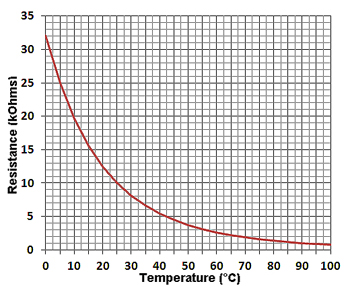

Note: Clicking on the resistance table will switch between table and graph view.

Resistances vary with temperature and should conform approximately to the table below:
