Set Appliance State:
Mains Power Off
Isolate Mains Power to appliance as per TOPs P4
Boiler Thermal Store must NOT be at maximum temperature.

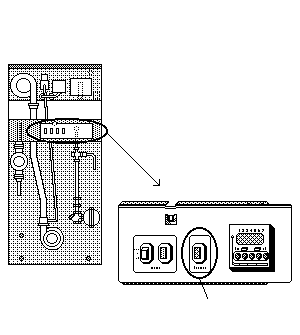

Models with Programmer: Rocker Switch to Continuous.
Models without Programmer: Rocker Switch to ON.
Mains Power ON
Boiler Thermal Store must NOT be at maximum temperature.
Models with Programmer: Rocker Switch to Continuous.
Models without Programmer: Rocker Switch to ON.
Mains Power ON
Observation:
Allow the Boiler to run until the Thermal Store reaches maximum temperature.
Boiler should shut down and the Green Neon will extinguish.
Boiler should shut down and the Green Neon will extinguish.
