Set Appliance State:
Mains Power Off
Set Multimeter to AC Volts
CH Demand
Models with Programmer:
Rocker Switch to Timed, Programmer C/H demand to ON.
Models without Programmer: Central Heating Switch to ON.
Note:
If the Appliance is only utilised for Hot Water (no CH System) select the "Mains voltage present" option below.
Rocker Switch to Timed, Programmer C/H demand to ON.
Models without Programmer: Central Heating Switch to ON.
Note:
If the Appliance is only utilised for Hot Water (no CH System) select the "Mains voltage present" option below.
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |

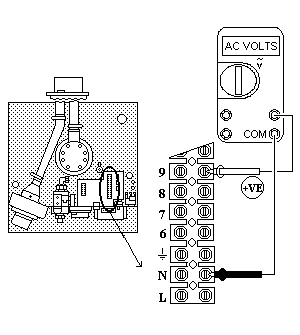

Measurement:
Measure Mains Voltage across Connection 9
(on the 12 way Terminal Block) and the Main
Appliance Neutral Connection.
(on the 12 way Terminal Block) and the Main
Appliance Neutral Connection.
