XSol Diagnostic System

RESISTANCE THERMISTOR

Set Appliance State:

Isolate Mains Power to appliance as per TOPs P4

Set Multimeter to Resistance

Disconnect thermistor plug from PCB

Measurement:

Measure the resistance across the thermistor plug.
The resistance varies with temperature and should conform approximately to the table below.

id classic ff250 308357 thr plug.gif

id classic ff250 h20882 pcb.jpg



Temperature Range (°C)	Resistance Range
0°C to 10°C	18.0kΩ - 28.0kΩ
10°C to 20°C	12.0kΩ - 18.0kΩ
20°C to 30°C	8.3kΩ - 12.0kΩ
30°C to 40°C	5.7kΩ - 8.3kΩ
40°C to 50°C	4.1kΩ - 5.7kΩ
50°C to 60°C	3.0kΩ - 4.1kΩ
60°C to 70°C	2.2kΩ - 3.0kΩ
70°C to 80°C	1.7kΩ - 2.2kΩ
80°C to 90°C	1.3kΩ - 1.7kΩ
90°C to 100°C	1.0kΩ - 1.3kΩ

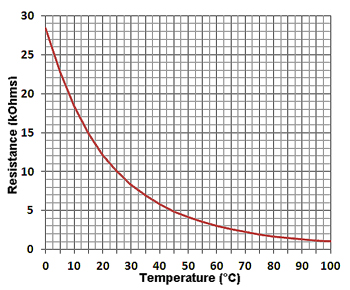

Note: Clicking on the resistance table will switch between table and graph view.
