Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Set Multimeter to Resistance

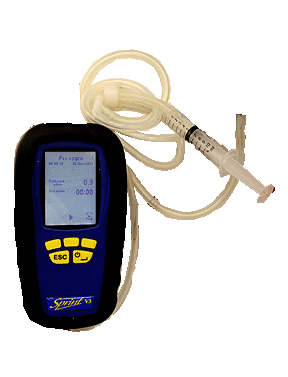

Connect the APS testing kit and FGA to the APS
(positive connections)
(positive connections)
Measurement:
Steadily increase the pressure using the syringe to that shown on the APS.
Measure the resistance between pins 6 and 7 on the ignition control box connector.
Continuity / zero resistance should be measured.
Notes:
1. If continuity is not obtained it is permissible to increase the pressure by 50%.
2. 100 Pascals = 1mb / 50 Pascals = 0.5mb.
3. If resistance is as expected note the pressure when this occurred and do not remove kit from APS.
Measure the resistance between pins 6 and 7 on the ignition control box connector.
Continuity / zero resistance should be measured.
Notes:
1. If continuity is not obtained it is permissible to increase the pressure by 50%.
2. 100 Pascals = 1mb / 50 Pascals = 0.5mb.
3. If resistance is as expected note the pressure when this occurred and do not remove kit from APS.
Isolate as per TOPs P4
and refit as necessary
