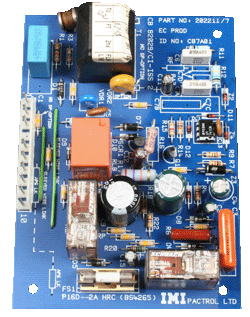

PCB FUSE
Set Appliance State:
Isolate Mains Power to appliance as per TOPs P4
Set Multimeter to Resistance
Measurement:
Remove the PCB Fuse and check its Resistance.
FUSE SHORT CIRCUIT
FUSE OPEN CIRCUIT
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
