Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Set Multimeter to AC Voltage
Control Thermostat in the Off position
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Measurement:

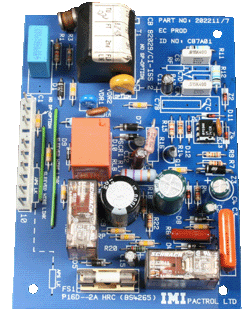

Measure the voltage across the Main PCB connector (marked as C1) connection 1 (Blue wire) and the Live connection marked L (Brown wire) on the main connector block located on the Interconnection Board.
Isolate as per TOPs P4
and refit as necessary
