FUSE F1
Set Appliance State:
Isolate Mains Power to appliance as per TOPs P4
Set Multimeter to Resistance
Remove control box cover if necessary
Measurement:

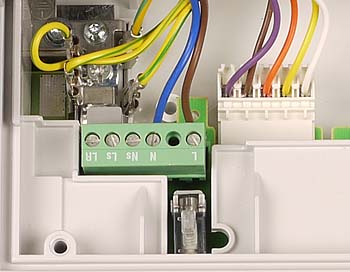

Check the resistance of main fuse located in front of the green main terminal block.
FUSE IS SHORT CIRCUIT (ZERO RESISTANCE)
FUSE IS OPEN CIRCUIT
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
