Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Set Multimeter to AC Volts

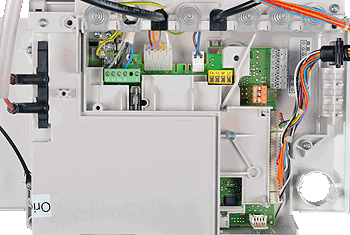

Gain access to PCB (use Insulation Mat as required)
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:
Test 1:
Measure voltage between pin 8 (green wire) on
connector ST9 at the PCB and a suitable earth point.
Expected voltage approximately 55V AC.
Test 2:
CH Demand ON.
Measure the voltage between pin 8 (green wire) on connector ST9 at the PCB
and a suitable earth point as boiler goes through its ignition sequence.
When the burner ignites the voltage should drop from 55V to approx. 40V AC or lower.
Measure voltage between pin 8 (green wire) on
connector ST9 at the PCB and a suitable earth point.
Expected voltage approximately 55V AC.
Test 2:
CH Demand ON.
Measure the voltage between pin 8 (green wire) on connector ST9 at the PCB
and a suitable earth point as boiler goes through its ignition sequence.
When the burner ignites the voltage should drop from 55V to approx. 40V AC or lower.
