Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
CH Demand
Gain access to PCB (use Insulation Mat as required)
Connect a pressure gauge to the fan pressure test point
Connect a pressure gauge to the fan pressure test point
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Measurement:
Allow fan to run and burner to ignite.
Using the plastic tool provided set the mode switch
to max and allow the appliance to operate the
appliance in maximum output mode.
Measure the fan pressure.

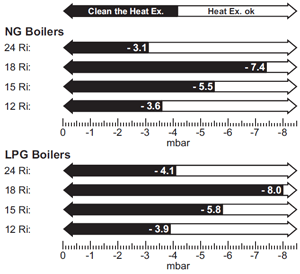

The fan pressure should be in the white area of the table.
Note:
Refit fan pressure test point cap
after test is completed.
Using the plastic tool provided set the mode switch
to max and allow the appliance to operate the
appliance in maximum output mode.
Measure the fan pressure.
The fan pressure should be in the white area of the table.
Note:
Refit fan pressure test point cap
after test is completed.
Isolate as per TOPs P4
and refit as necessary
