Set Appliance State:
Mains Power Off
CH Demand
On/Off Switch On.
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Measurement:

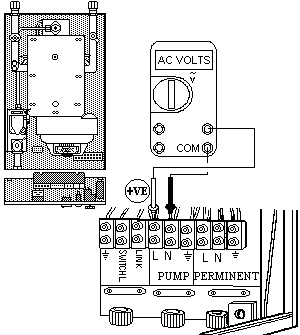

Measure Mains Voltage across the pump terminals marked PUMP L (Yellow wire) and Pump N (Blue wire) on the main terminal block.

Isolate as per TOPs P4
and refit as necessary
