Set Appliance State:
Mains Power Off
CH Demand
On/Off Switch On.
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Measurement:

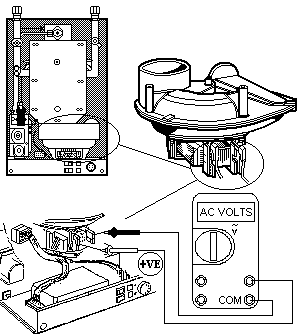

Measure Mains Voltage across the Pink spaded wire (Live) and the Blue spaded wire (Neutral) on the Fan.

Isolate as per TOPs P4
and refit as necessary
