Set Appliance State:
Mains Power Off
CH Demand
On/Off Switch On.
Gas On
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Observation:
Allow the Boiler to purge itself and the Burner to ignite.
With the Boiler operating, turn off the gas supply.

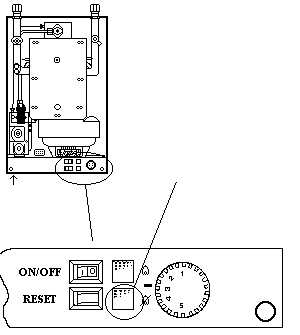

Does the Running (Orange) Neon go out and the Red (lockout) Neon illuminate indicating the Boiler has switched to a Lockout condition?
With the Boiler operating, turn off the gas supply.
Does the Running (Orange) Neon go out and the Red (lockout) Neon illuminate indicating the Boiler has switched to a Lockout condition?
