OVERHEAT THERMOSTAT RESISTANCE
Set Appliance State:
Set Multimeter to Resistance
Isolate Mains Power to appliance as per TOPs P4
Measurement:

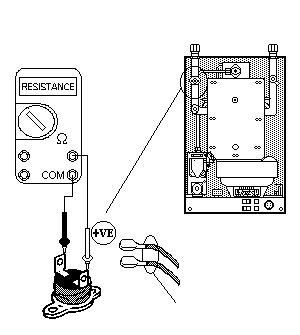

Remove both the Overheat Thermostat Red spaded wires from the Thermostat and measure the Resistance across the unconnected terminals on the Thermostat.
Red wires
THERMOSTAT SHORT CIRCUIT.
THERMOSTAT OPEN CIRCUIT.
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
