Set Appliance State:
Mains Power Off
CH Demand
On/Off Switch Off.
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Measurement:

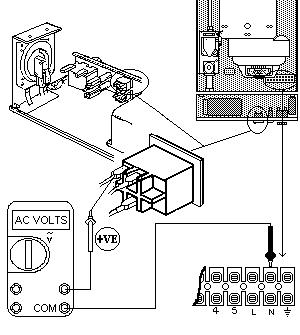

Measure Mains Voltage across the Red/White spaded wire on the On/Off Switch and the Neutral marked N (Blue wire) on the main connector block.

Isolate as per TOPs P4
and refit as necessary
