Set Appliance State:
Mains Power Off
CH Demand
On/Off Switch On.
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Measurement:

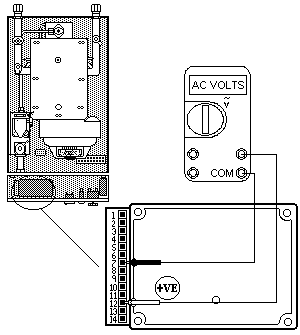

Measure Mains Voltage across the PCB Switched Live (Red/White wire, connection 12) and the Neutral
(Blue wire, connection 7) on the PCB.
(Blue wire, connection 7) on the PCB.

Isolate as per TOPs P4
and refit as necessary
