Set Appliance State:
Mains Power Off
CH Demand
On/Off Switch On.
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Measurement:

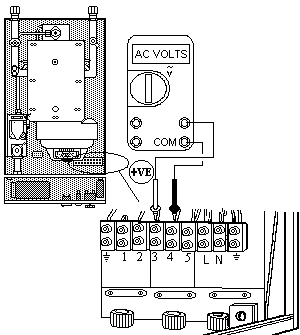

Measure Mains Voltage across the pump terminal 3
(Orange wire, Pump live) and terminal 4
(Yellow wire, Pump neutral) on the main connector block.
(Orange wire, Pump live) and terminal 4
(Yellow wire, Pump neutral) on the main connector block.

Isolate as per TOPs P4
and refit as necessary
