Set Appliance State:
Mains Power Off
CH Demand
On/Off Switch On.
Gas On
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Observation:
Allow the Boiler to purge itself and the Burner to ignite.
Allow the Boiler to operate for approximately 1 minute and then switch it off using the Boiler On/Off Switch.

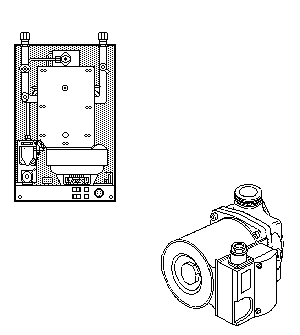

Pump should continue to run for approximately 9 minutes.
Allow the Boiler to operate for approximately 1 minute and then switch it off using the Boiler On/Off Switch.
Pump should continue to run for approximately 9 minutes.
