Set Appliance State:
Isolate Mains Power to appliance as per TOPs P4
Measurement:

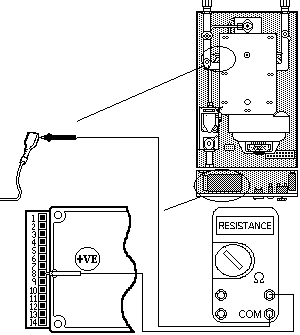

Disconnect the Burner Flame Sense
Electrode Lead from the Sense Electrode.
Measure the Lead continuity between the
disconnected Lead and connection 8
(Grey wire, marked FLAME P) on the PCB
connector multiplug.
Replace lead.
Electrode Lead from the Sense Electrode.
Measure the Lead continuity between the
disconnected Lead and connection 8
(Grey wire, marked FLAME P) on the PCB
connector multiplug.
Replace lead.

Isolate as per TOPs P4
and refit as necessary
