Set Appliance State:
Mains Power Off
CH Demand
On/Off Switch On.
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Measurement:

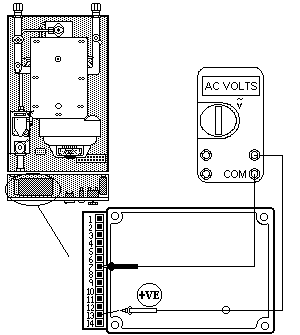

Measure Mains Voltage across the Black wire
(connection 13, Pressure Switch connection NO)
and the Blue wire (connection 7, PCB Neutral) on the PCB.
(connection 13, Pressure Switch connection NO)
and the Blue wire (connection 7, PCB Neutral) on the PCB.

Isolate as per TOPs P4
and refit as necessary
