Set Appliance State:
Mains Power Off
CH Demand
Isolate Mains Power to appliance as per TOPs P4

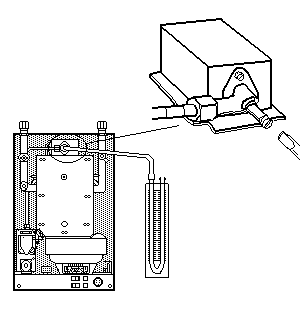

Connect U gauge to Burner Pressure Test Point at top of Boiler
On/Off Switch On.
Connect U gauge to Burner Pressure Test Point at top of Boiler
On/Off Switch On.
Gas On
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Measurement:
Allow the Boiler to purge itself and the Burner to ignite.
Does the Burner remain alight?
Does the Burner remain alight?
